Plate And Sheet

• Application
• Other, Construction, Automotive, Shipbuilding, Machinery, Kitchenware, Chemical, Food Industry

• Chemical Composition
• Typically includes Iron, Chromium (16-20%), Nickel (8-12%), Manganese, Silicon, Carbon, and others depending on grade

• Coating Type
• No external coating; natural oxide layer

• Color
• Silver/Metallic

• Composition
• Fe, Cr, Ni, Mo, C, Mn, Si, P, S

• Corrosion Resistant
• Excellent, especially grades 304 and 316

• Diameter
• N/A (Applies to round products)

• Dimension (L*W*H)
• Standard/Custom (e.g. 2440mm x 1220mm x 3mm)

• Finish Type
• Matte, Glossy, Satin, Mirror

• Grade
• 304, 316, 201, 430, etc.

• Hardness
• HV 160-220 (varies by grade and temper)

• Heat Resistance
• Yes

• Material Composition %
• Chromium 18%, Nickel 8% (304 grade example)

• Material Grade
• 304/316/201/430 or as required

• Product Form
• Flat Plate/Sheet

• Product Name

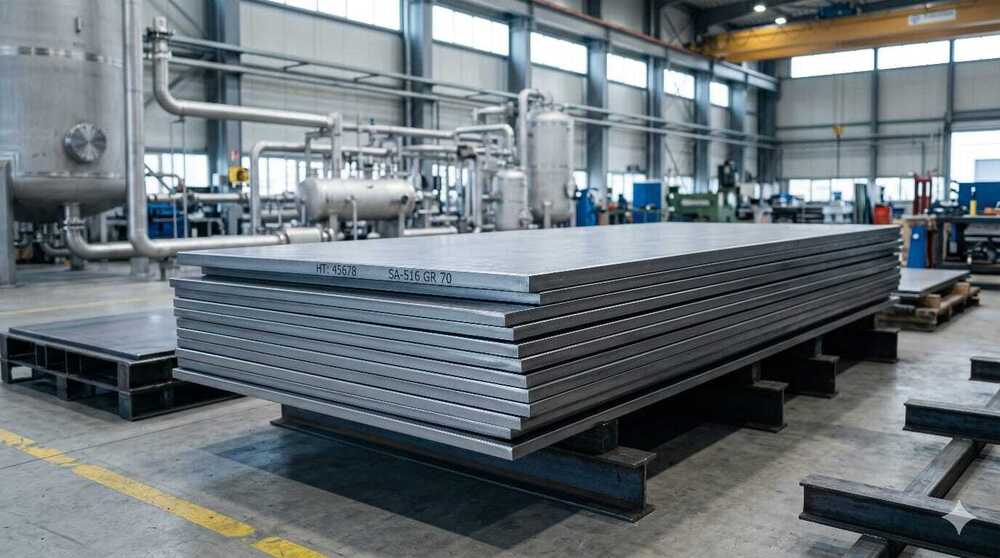

• Other, Stainless Steel Plate

• Recyclable
• Yes, 100% recyclable

• Shape
• Other, Plate/Sheet

• Size
• Standard and custom sizes available

• Steel Product Type
• Other, Plate/Sheet

• Steel Standard
• Other, ASTM, JIS, DIN, EN, ISO

• Steel Type
• Stainless Steel

• Surface
• Mill Finish, 2B, BA, No.1, No.4, Mirror finish

• Temper
• Annealed/Hard

• Tensile Strength
• 520-750 MPa (varies by grade)

• Thickness
• 0.5mm to 100mm or more (custom available)

• Usage
• Fabrication, Industrial, Kitchen, Structural, Decorative

• Weight
• Varies with size and thickness (Density ~8.0 g/cm3)

• Width
• Customizable (Common widths 1000mm, 1220mm, 1500mm, 2000mm)

• Application
• Other, Wear Resistant Applications, Mining, Construction, Heavy Vehicle Bodies

• Chemical Composition
• Carbon, Manganese, Silicon, Nickel, Chromium, Boron

• Coating Type
• No standard coating (can be customized as per order)

• Color
• Red-Brown (as shown, natural finish)

• Composition
• Low-Alloy Steel with special elements for wear resistance

• Corrosion Resistant
• Medium (needs top coat for enhanced corrosion resistance)

• Diameter
• N/A (Plate form)

• Dimension (L*W*H)
• As per order, commonly up to 6000 mm x 2500 mm x (thickness)

• Finish Type
• Rough/Industrial Finish

• Grade
• Hardox 400 / 450 / 500 / 600 (as per requirement)

• Hardness
• 400-600 HBW (as per grade)

• Heat Resistance
• Yes

• Material Composition %
• C: 0.12-0.25%, Mn: 1.0-1.6%, Si: 0.15-0.45%, Cr: 0.4-1.5%, Ni/B/V as per grade

• Material Grade
• 400 / 450 / 500 / 600

• Product Form
• Plate

• Product Name

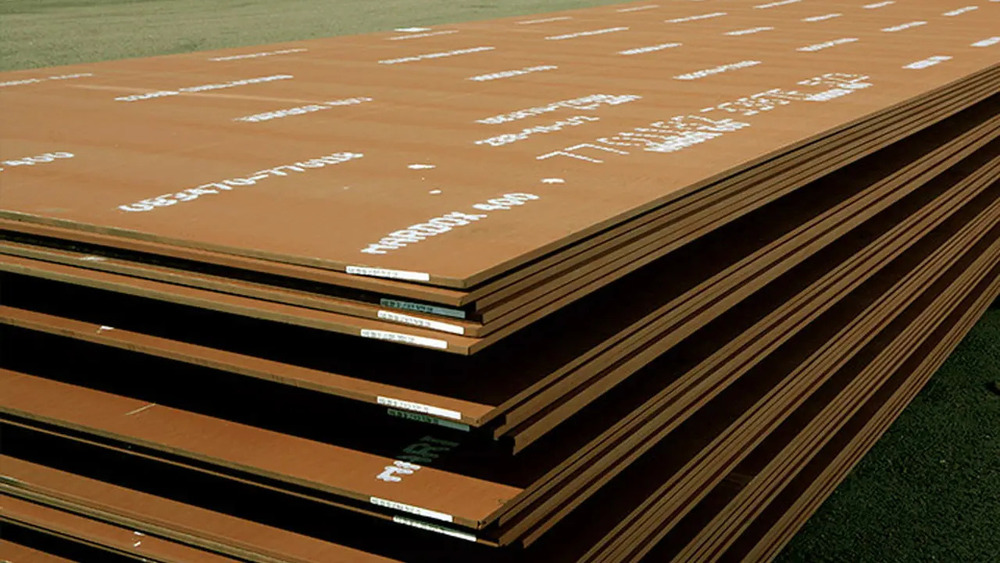

• Other, CS Hardox Plate

• Recyclable
• Yes

• Shape
• Other, Rectangular Plate

• Size
• Customizable as per requirement

• Steel Product Type
• Other, Steel Plate

• Steel Standard
• Other, EN 10029, EN 10163

• Steel Type
• Alloy Steel

• Surface
• Mill Finish (Shot Blasted)

• Temper
• Quenched and Tempered

• Tensile Strength
• 1250-1800 MPa (varies by grade)

• Thickness
• 4 mm - 100 mm

• Usage
• Wear Liners, Dump Truck Bodies, Excavator Buckets, Bins, Crushers

• Weight
• Varies as per dimensions (approx. 85-250 kg/m2 depending on thickness)

• Width
• 1250 mm to 2500 mm

• Application
• Other, Construction, Kitchen Equipment, Automotive, Chemical Industry

• Chemical Composition
• 18% Cr, 8% Ni (for 304 grade), Balance Fe

• Coating Type
• Uncoated / Optional Coated

• Color
• Silver/Grey

• Composition
• Cr, Ni, Fe, trace elements

• Corrosion Resistant
• Yes

• Diameter
• N/A (Sheet format)

• Dimension (L*W*H)
• 2440 mm x 1220 mm x 0.3-12 mm

• Finish Type
• Smooth/Polished/Mirror/Matte

• Grade
• 304, 316, 430 (other grades on request)

• Hardness
• HRB 90 (for 304 grade)

• Heat Resistance
• Yes

• Material Composition %
• Cr: 18-20%, Ni: 8-10.5%, Fe: Balance

• Material Grade
• Industrial / Commercial

• Product Form
• Flat Sheet

• Product Name

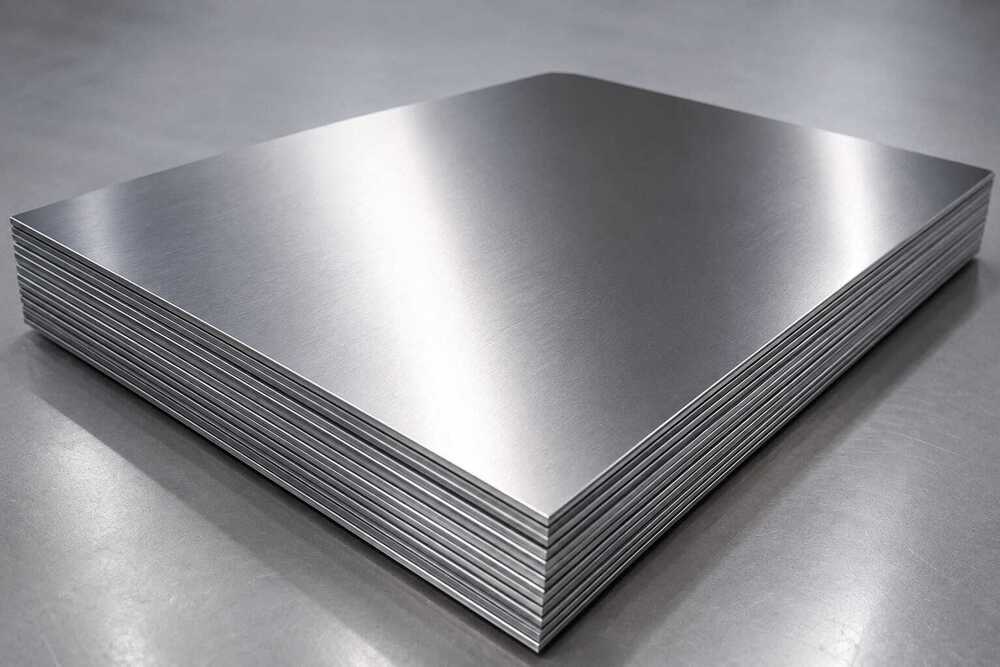

• Other, Stainless Steel Sheet

• Recyclable
• Yes

• Shape
• Other, Rectangular Sheet

• Size
• Customized as required

• Steel Product Type
• Other, Sheet

• Steel Standard
• Other, ASTM A240, AISI, JIS, EN

• Steel Type
• Stainless Steel

• Surface
• 2B, No.1, No.4, BA, Mirror, Matte

• Temper
• Soft, Semi-hard, Hard

• Tensile Strength
• 515 - 750 MPa (varies by grade)

• Thickness
• 0.3 mm - 12 mm

• Usage
• Fabrication, Decoration, Structural Applications

• Weight
• Varies by size and thickness

• Width
• 1000 mm - 2000 mm
